    • Programmable Intelligent Switch Control Modules
    • 12 Channels 10A Relay Multi-function Controller
    Home > Products > E-Lighting Intelligent Atmosphere Light Management Solution > E-LIGHTING Output Control Unit > Digital Programmable Relay Switch Control Module > Programmable Intelligent Switch Control Modules > 12 Channels 10A Relay Multi-function Controller
      Product information
    • Approbations：
    • Built-in 365 day astronomical clock, can achieve a variety of timing control

      12 channels passive relay output


    • Download Leaflet


    Specifications
    Ordering Information
    • Type
    • DRC1210F

    • Order Code
    • 551210

    • Full product name
    • 12 Channels 10A Relay Multi-function Controller

    Input Information
    • Power Supply
    • 85-265V AC,50/60Hz Single Phase at 0.2A

    • Relay swith output
    • 12 x 10 A

    • Preset scene
    • 99

    • Preset event
    • 16

    • Preset stunt
    • 16

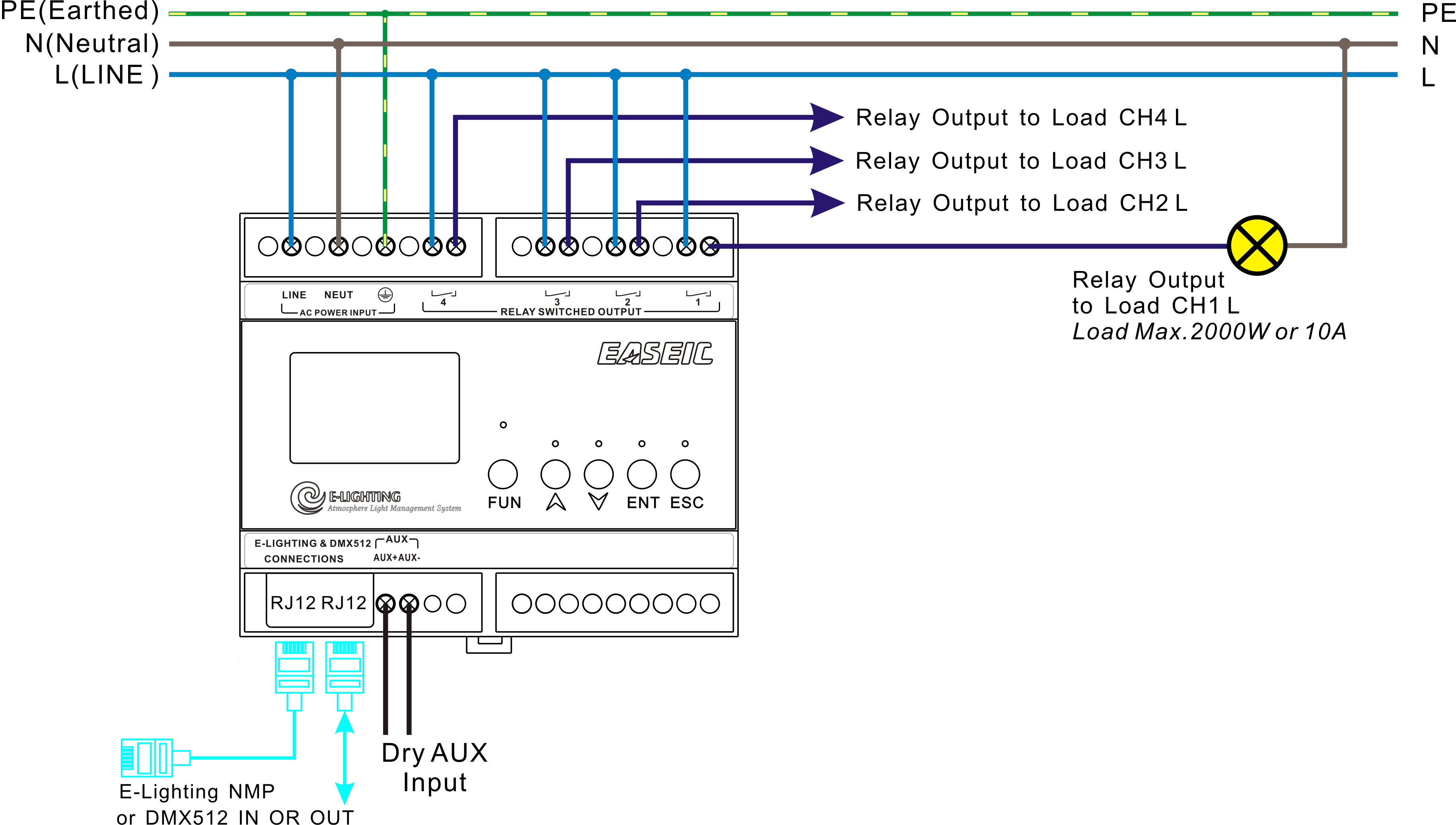

    • Signal and port
    • 2 x E-LIGHTING NMP(RS485) RJ12 or 1 x DMX512(1990) in or out or 1 x AUX programmable dry contact

    • Ambient Temperature(ta)
    • -20→+60℃

    • Wet Range
    • 0-90% RH non-condensing

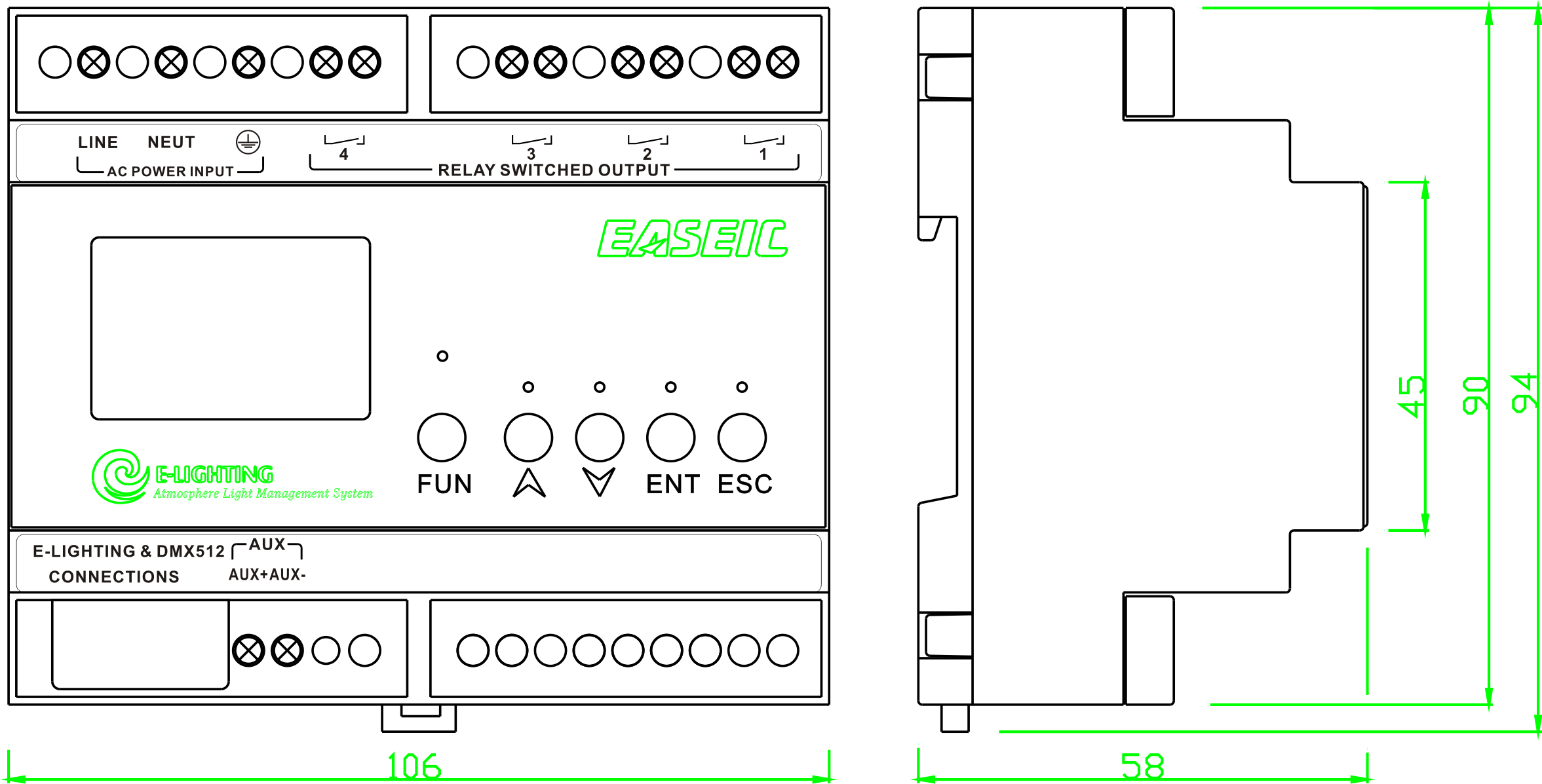

    • Dimensions L X W X H
    • 105x90x58mm (DIN rail 6 Unit)

    • Weight
    • 0.3G
