    • LPD Constant Current 0/1-10V Dimmable 150W

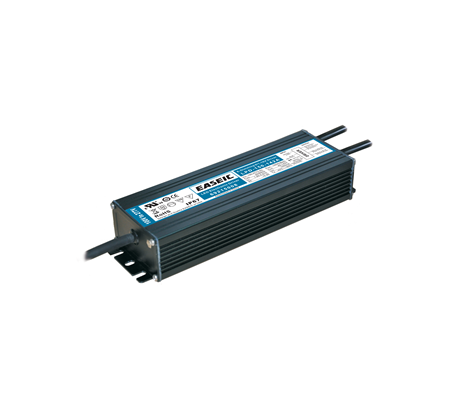

    • LPD 150W 82-142V 1050mA 0/1-10V Dimmable 90-305Vac
    Home > Products > IP43 & IP67 LED Drivers > Outdoor Lighting LED driver > LPD Constant Current 0/1-10V Dimmable > LPD Constant Current 0/1-10V Dimmable 150W > LPD 150W 82-142V 1050mA 0/1-10V Dimmable 90-305Vac
      Product information
    • Approbations：
    • Universal AC input (90~305Vac)
      Designed for LED lighting applications
      Built-in 3 in 1 dimming function(0/1-10V,PWM or Resistance)
      IP67/IP65 design for indoor or outdoor installations
      These drivers operate to specification under wide temperature and electrical ranges to ensure reliability
      LPD series LED drivers for use in Class I, Division 2 hazardous location luminaires
      Cooling by free air convection
      Suitable for dry, damp, and wet location
      5 year warranty
    • Download Leaflet


    Specifications
    Ordering Information
    • Type
    • LPD-150-142A

    • Order Code
    • 69215008

    • Full product name
    • E-Dimming 150W 82-142V 1.05A 0/1-10V Dimmable

    Input Information
    • Line Voltage
    • 90-305Vac

    • Line Current
    • 1.43A@120VAC
      0.74A@230VAC
      0.61A@277VAC

    • Line Frequency
    • 50/60Hz

    • Min, Mains Voltage operational
    • 90[min]

    • Max, Mains Voltage operational
    • 305[max]

    • THD(total)
    • <20%

    • Power Factor(PF)
    • >0.95

    • Inrush Current(Typ#)
    • Cold Start 65A(twidth=270us measured at 50% Ipeak) at 230VAC

    • Leakage Current(Typ#)
    • <0.75mA/230VAC

    Output Information
    • Output Power
    • 150W(Max.)

    • Output voltage
    • 82V to 142V

    • Output Constant Current
    • 1.05A

    • Maximum open circuit voltage
    • <60V

    • Output Current Ripple(ripple=peak to peak)
    • 2% of nominal output voltage (whichever is greater),measured at 20Mhz bandwidth with 0.1uf ceramic capacitor in parallel with 10uf electrolytic capacitor connected at the end of the output connector.

    • Protections
    • Over Current, Over Voltage, Short Circuit and Open Circuit Protection for LED+ and LED-

    • Ambient Temp Range
    • _40℃ to +70℃, 20-95% RH non-condensing

    • Max Case Temperature(Tc)
    • 75℃ for Life & 85℃ for UL Safety

    Features
    • Dimming Interface
    • 0/1-10V

    • DALI Dimming Specifications
    • Sink Current <2mA

    • Dimming range
    • 10-100%

    Environment & Approbation
    • Environmental Protection Rating
    • UL damp and dry

    • Agency Approbations
    • UL8750,UL1310, CSA-C22.2 No.250.0-08,ENEC EN61347-1,EN61347-2-13 independent, EN62384, TUV EN60950-1

    • Electromagnetic Compliance
    • FCC Title 47 Part 15 Class A
      Compliance to EN55015,EN61000-3-2 Class C(@100% Load);EN6100-3-3
      Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547,EN55024, light industry level(surge 2KV), criteria A

    • Audible noise
    • <24dB Class A

    Mechanical Dimensions
    • Case Length(L)
    • 8.0
      203

    • Case Width(W)
    • 2.6
      66

    • Case Height(H)
    • 1.5
      38

    • Mounting Holes(I1)
    • 6.9
      175

    • Mounting Holes(I2)
    • 1.3
      34

    • Mounting Holes(I3)
    • 0.2
      5

    • Mounting Holes(I4)
    • 7.4
      188

    • Input Wire(Wire1)_SJTW 18 AWG x 3C
    • 11.8
      300±20

    • Output Wire(Wire2)_SJTW 18 AWG x 2C
    • 11.8
      300±20

    • Overall Length
    • 8.0
      203
