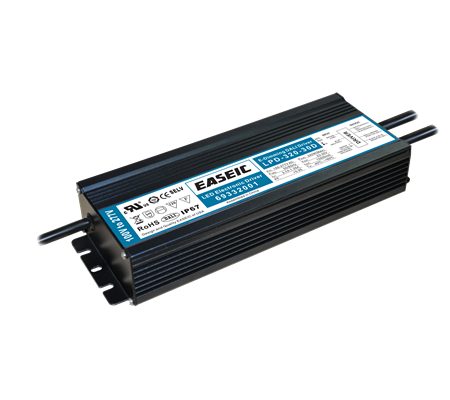

    • LPD Constant Current DALI Dimmable 320W
    • LPD 320W 23-30V 10500mA DALI Dimmable 90-305Vac
    Home > Products > IP43 & IP67 LED Drivers > Outdoor Lighting LED driver > LPD Series Constant Current DALI Dimmable > LPD Constant Current DALI Dimmable 320W > LPD 320W 23-30V 10500mA DALI Dimmable 90-305Vac
      Product information
    • Approbations：
    •   Universal AC input (90~305Vac)
        Designed for LED lighting applications
        Built-in DALI(IEC62386) dimming control protocol
        IP67/IP65 design for indoor or outdoor installations
        These drivers operate to specification under wide temperature
      and electrical ranges to ensure reliability
        LPD series LED drivers for use in Class I, Division 2 hazardous
      location luminaires
        Cooling by free air convection
        Suitable for dry, damp, and wet location
        5 year warranty
    • Download Leaflet


    Specifications
    Ordering Information
    • Type
    • LPD-320-30D

    • Order Code
    • 69322001

    • Full product name
    • E-Dimming 320W 23-30V 10500mA DALI Dimmable

    Input Information
    • Line Voltage
    • 90-305Vac

    • Line Current
    • 1.15A@120VAC
      0.60A@230VAC
      0.49A@277VAC

    • Line Frequency
    • 50/60Hz

    • Min, Mains Voltage operational
    • 90[min]

    • Max, Mains Voltage operational
    • 305[max]

    • THD(total)
    • <20%

    • Power Factor(PF)
    • >0.95

    • Inrush Current(Typ#)
    • Cold Start 65A(twidth=270us measured at 50% Ipeak) at 230VAC

    • Leakage Current(Typ#)
    • <0.75mA/230VAC

    Output Information
    • Output Power
    • 320W(Max.)

    • Output voltage
    • 23V to 30V

    • Output Constant Current
    • 10.5A

    • Maximum open circuit voltage
    • <60V

    • Output Current Ripple(ripple=peak to peak)
    • 2% of nominal output voltage (whichever is greater),measured at 20Mhz bandwidth with 0.1uf ceramic capacitor in parallel with 10uf electrolytic capacitor connected at the end of the output connector.

    • Protections
    • Over Current, Over Voltage, Short Circuit and Open Circuit Protection for LED+ and LED-

    • Ambient Temp Range
    • _40℃ to +70℃, 20-95% RH non-condensing

    • Max Case Temperature(Tc)
    • 75℃ for Life & 85℃ for UL Safety

    Features
    • Dimming Interface
    • DALI

    • DALI Dimming Specifications
    • Sink Current <2mA

    • Dimming range
    • 10-100%

    Environment & Approbation
    • Environmental Protection Rating
    • UL damp and dry

    • Agency Approbations
    • UL8750,UL1310, CSA-C22.2 No.250.0-08,ENEC EN61347-1,EN61347-2-13 independent, EN62384, TUV EN60950-1

    • Electromagnetic Compliance
    • FCC Title 47 Part 15 Class A
      Compliance to EN55015,EN61000-3-2 Class C(@100% Load);EN6100-3-3
      Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547,EN55024, light industry level(surge 2KV), criteria A

    • Audible noise
    • <24dB Class A

    Mechanical Dimensions
    • Case Length(L)
    • 7.4inch
      189mm

    • Case Width(W)
    • 2.6inch
      66mm

    • Case Height(H)
    • 1.5inch
      38mm

    • Mounting Holes(I1)
    • 6.3inch
      161mm

    • Mounting Holes(I2)
    • 1.3inch
      34mm

    • Mounting Holes(I3)
    • 0.2inch
      5mm

    • Mounting Holes(I4)
    • 6.9inch
      174mm

    • Input Wire(Wire1)_SJTW 18 AWG x 3C
    • 11.8inch
      300mm±20

    • Output Wire(Wire2)_SJTW 18 AWG x 2C
    • 11.8inch
      300±20mm

    • Overall Length
    • 7.4inch
      189mm
