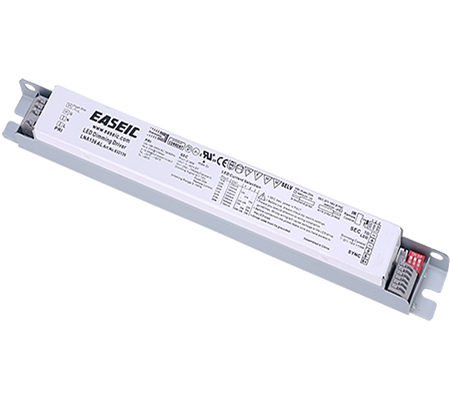

    • SMART LNA AL Multilevel Constant Current 0/1-10V Dimmable 36W
    • SMART LNA AL 36W 3-62V 250-700mA 0/1-10V Dimmable 100-240Vac
    Home > Products > IP20 LED Drivers > 0/1-10V Multilevel Constant current output driver > Smart LNA XL Multilevel Constant Current 0/1-10V Dimmable > SMART LNA AL Multilevel Constant Current 0/1-10V Dimmable 36W > SMART LNA AL 36W 3-62V 250-700mA 0/1-10V Dimmable 100-240Vac
      Product information
    • Approbations：
    • Constant Current output 250-700mA.
      Multi-power driver supplied with dip-switch for the selection of the output current.
      DC0/1-10V dimming control interface.
      Dimming range from 0 -100%,LED start at 0.1% possible.

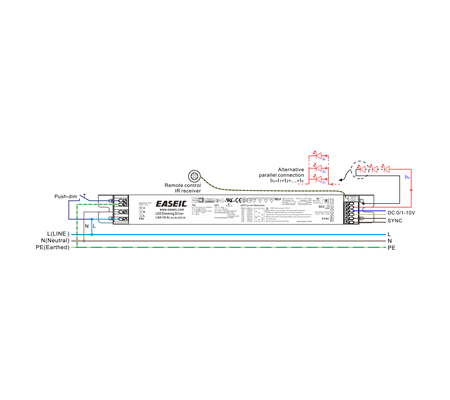

      PUSH-Dim, dimming and switching via push-button with memory function.
      Built-in infrared remote control dimming control.
      Properly installed infrared receiver, remote control distance> 8 m.
      Universal AC power supply,100 - 277VAC 50/60Hz input
      Class II protection against electric shock for direct or indirect contact.
      It can be used for lighting equipment in protection class I and II.
      Supplied with terminal cover and cable retainer.
      Driver can be secured with slot for screws.
      Can be switched on and off on secondary circuit for power LED.
      Protections: Short circuit , Over voltage, Over Current , Over temperature
      5 year warranty
    • Download Leaflet


    Specifications
    Ordering Information
    • Type
    • LNA136 AL

    • Order Code
    • 632136

    • Full product name
    • 36W Single Channel Constant Current Output

    Input Information
    • Line Voltage
    • 100-240Vac

    • Frequency Range
    • 47-63Hz

    • Power Factor(Typ#@230VAC)
    • pf≥95% at full load

    • Efficience(Typ#@230VAC)
    • ≥95

    • Ac Current
    • 0.21@120VAC

    • Inrush Current(Typ#)
    • ≤20A@230VAC cold start with full load

    • Leakage Current
    • ≤0.5mA@230VAC

    • THD(Total Harmonic Dist#)
    • <20% at full load

    Output Information
    • Rated Power
    • 36W(Max.)

    • DC Voltage Range
    • 3-62 VDC(see output setting table)

    • Rated Current Range
    • 180-700mA (see output setting table)

    • Load Regulation
    • ±5%

    • Turn On Time
    • <1s at full load

    Dimming
    • Dimming interface
    • 0/1-10V

    • Modes
    • Standard DC 0/1-10V control interface, Sink or Source <1mA 10V PWM dimming control, Infrared remote control Wide dimming range from 0% up to 100%, Dimming Over entire input voltage voltage

    Protections
    • Short Circuit
    • Hiccup mode protection. Recovers automatic after fault condition is removed.

    • Over Voltage
    • <30% above the maxmum output voltage listed for the specific part number.Latch mode-unit needs to be power cycled to recover

    • Over Current
    • <15% above the maximum output current listed for the specific part number. The unit limits the current. Unit autorecovers after fault is removed

    • Over Temperature
    • Unit turns off when Tc>90℃.Shuts down-unit needs to be power cycled to recover

    • Ambient Temp Range
    • -20℃ to +60℃, 20-95% RH non-condensing

    • Max Case Temperature(Tc)
    • 75℃ for Life & 85℃ for UL Safety

    Environment & Approbation
    • Working Temperature
    • _30℃ ---+60℃ at Full load

    • Working Humidity
    • 20% --- 90% RH non-condensing

    • Storage Temperature, Humidity
    • _40°C --- + 80°C, 10% --- 90% RH non-condensing

    • Vibration
    • 10 - 500Hz, 2G 10min/1 cycle period for 60 minutes along each axis (X, Y, Z)

    Safety & EMC
    • Safety Standards
    • UL8750, UL1310,UL1012,UL879,UL60950-1,CSA C22.2 No. 250.0-08(except for 15V-54V, ), EN61347-1, EN61347-2-13 independent; TUVEN60950-1 Compliant

    • EMI Conduction & Radiation
    • Compliance to EN55015 Class A, FCC 47CFR Part 15 Class

    • Harmonic Current
    • Compliance to EN61000-3-2 Class C

    • EMS Immunity
    • Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024,EN61547, Light IndustryLevel (surge 2KV), criteria A

    lifetime
    • lifetime1
    • > 50,000 hours

    Mechanical Dimensions
    • Case Length(L)
    • 280mm

    • Case Height(W)
    • 30mm

    • Case Height(H)
    • 26mm
