    • LNT C.C. Triac Dimming 24W

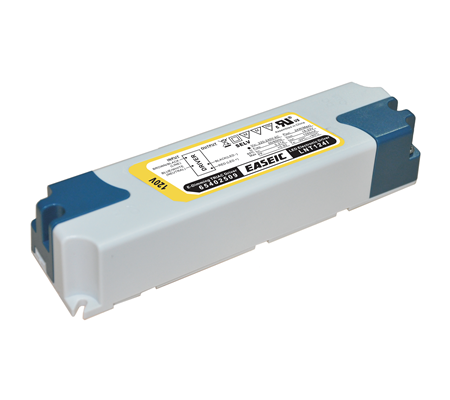

    • LNT 24W 16-22V 1050mA Triac Dimmable 100-120Vac
    Home > Products > IP20 LED Drivers > Down Light and Spot Ligtht TRIAC /ELV Driver > LNT Constnt Current Triac Dimmable > LNT C.C. Triac Dimming 24W > LNT 24W 16-22V 1050mA Triac Dimmable 100-120Vac
      Product information
    • Approbations：
    • Compatible with industry standard TRIAC(forward-phase or Leading-edge) and ELV(Reverse-phase or Trailing-edge) phase-cut dimmers
      Designed for LED lighting applications
      Compact form factor, Fully isolated plastic case
      Class 2 power unit
      Cooling by free air convection
      high reliability, low cost
      Suitable for dry, damp, and wet location
      5 year warranty
    • Download Leaflet


    Specifications
    Ordering Information
    • Type
    • LNT124I

    • Order Code
    • 65402509

    • Full product name
    • E-Dimming 24W 16-22V 1050mA Triac Dimmable

    Input Information
    • Line Voltage
    • 100-120Vac

    • Line Current
    • 0.15A@120VAC
      0.14A@230VAC
      0.14A@277VAC

    • Line Frequency
    • 50/60Hz

    • Min, Mains Voltage operational
    • 198[min]

    • Max, Mains Voltage operational
    • 264[max]

    • THD(total)
    • <20%

    • Power Factor(PF)
    • >0.9

    • Inrush Current(Typ#)
    • Cold Start 15A(twidth=270us measured at 50% Ipeak) at 230VAC

    • Leakage Current(Typ#)
    • <0.5mA/230VAC

    Output Information
    • Output Power
    • 24W(Max.)

    • Output voltage
    • 16V to 22V

    • Output Constant Current
    • 1.05A

    • Maximum open circuit voltage
    • <60V

    • Output Current Ripple(ripple=peak to peak)
    • 10% of nominal output voltage (whichever is greater),measured at 20Mhz bandwidth with 0.1uf ceramic capacitor in parallel with 10uf electrolytic capacitor connected at the end of the output connector.

    • Protections
    • Over Current, Over Voltage, Short Circuit and Open Circuit Protection for LED+ and LED-

    • Ambient Temp Range
    • -20℃ to +60℃, 20-95% RH non-condensing

    • Max Case Temperature(Tc)
    • 75℃ for Life & 85℃ for UL Safety

    Features
    • Dimming Interface
    • Triac

    • DALI Dimming Specifications
    • Sink Current <2mA

    • Dimming range
    • 5-100% / 0-100%

    Environment & Approbation
    • Environmental Protection Rating
    • TUV damp and dry

    • Agency Approbations
    • UL8750,UL1310, CSA-C22.2 No.250.0-08,ENEC EN61347-1,EN61347-2-13 independent, EN62384, TUV EN60950-1

    • Electromagnetic Compliance
    • FCC Title 47 Part 15 Class A
      Compliance to EN55015,EN61000-3-2 Class C(@100% Load);EN6100-3-3
      Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547,EN55024, light industry level(surge 2KV), criteria A

    • Audible noise
    • <24dB Class A

    Mechanical Dimensions
    • Case Length(L)
    • 5.6inch
      141mm

    • Case Width(W)
    • 1.5inch
      38mm

    • Case Height(H)
    • 0.9inch
      22mm

    • Mountin Holes(11)
    • 5.2inch
      132mm

    • Mountin Holes(12)
    • 1.1inch
      29mm

    • Mountin Holes(13)
    • 0.13inch
      32mm

    • Overall Length
    • 5.6inch
      141mm
