    • Universal Dimming Control Module
    • 2 Channels Universal Dimming control module
    Home > Products > E-Lighting Intelligent Atmosphere Light Management Solution > E-LIGHTING Output Control Unit > Rail Universal Dimming Module > Universal Dimming Control Module > 2 Channels Universal Dimming control module
      Product information
    • Approbations：

    • 2 Channels trailing edge dimming output,Linearity dimming output, dimming range 0-100%,

    • Download Leaflet


    Specifications
    Ordering Information
    • Type
    • DMC202T

    • Order Code
    • 560202

    • Full product name
    • 2 Channels Universal Dimming control module

    Input Information
    • Power Supply
    • 85-265V AC,50/60Hz Single Phase at 5A

    Input Information
    • Dimming ouput
    • 2 x 2A,Per Channel

    • Preset Scenes
    • 99

    • Preset event
    • 16

    • Preset stunt
    • 16

    • Control signal & COM port
    • 2 X E-Lighting NMP( RS485) or 1 x DMX512(1990) in or out or 1 x AUX programmable dry contact

    • Ambient Temperature(ta)
    • Negative 20 ---+60℃

    • Wet Range
    • 0-90% RH non-condensing

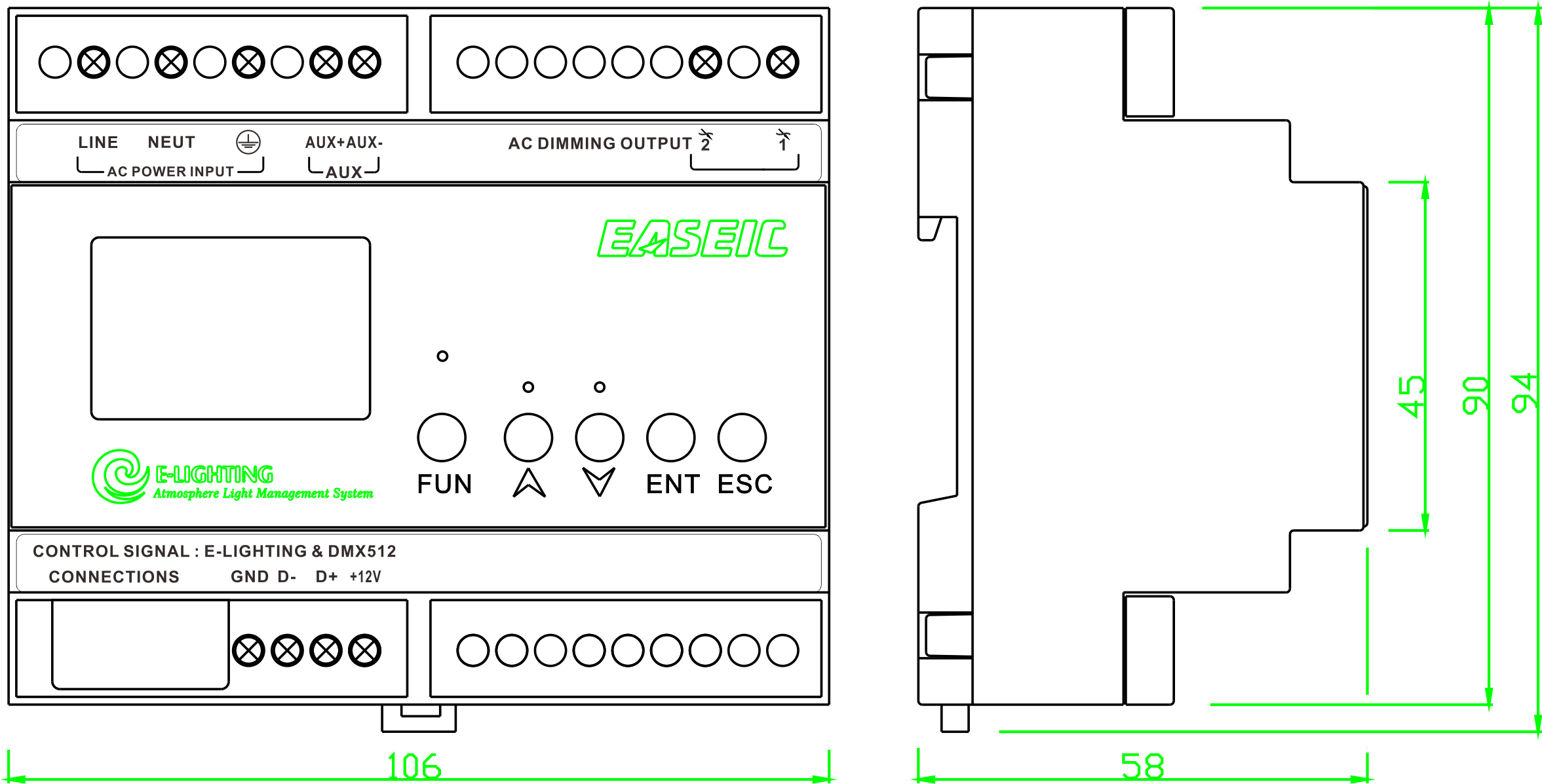

    • Dimensions L X W X H
    • 105x90x58mm( DIN rail 6 unit)

    • Weight
    • 0.3KG
