    • LPD Constant Current 0/1-10V Dimmable 30W

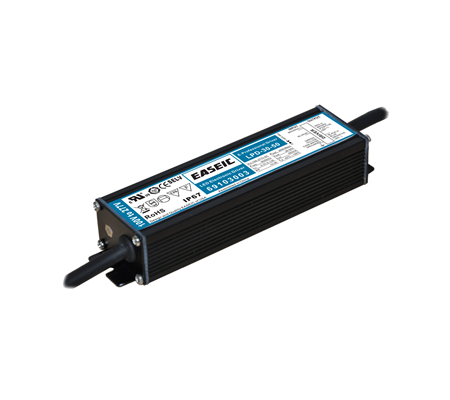

    • LPD 30W 65-85V 350mA NON-Dimmable 100-277Vac
    Home > Products > IP43 & IP67 LED Drivers > Outdoor Lighting LED driver > LPD Constant Current 0/1-10V Dimmable > LPD Constant Current 0/1-10V Dimmable 30W > LPD 30W 65-85V 350mA NON-Dimmable 100-277Vac
      Product information
    • Approbations：
    • Designed for LED lighting applications
      IP67/IP65 design for indoor or outdoor installations
      These drivers operate to specification under wide temperature and electrical ranges to ensure reliability
      LPD series LED drivers for use in Class I, Division 2 hazardous location luminaires
      Cooling by free air convection
      Suitable for dry, damp, and wet location
      5 year warranty
    • Download Leaflet


    Specifications
    Ordering Information
    • Type
    • LPD-30-85

    • Order Code
    • 69103004

    • Full product name
    • E-Professional 30W 65-85V 350mA NON-Dimmable

    Input Information
    • Line Voltage
    • 100-277Vac

    • Line Current
    • 0.32A@120VAC
      0.16A@230VAC
      0.13A@277VAC

    • Line Frequency
    • 50/60Hz

    • Min, Mains Voltage operational
    • 90[min]

    • Max, Mains Voltage operational
    • 305[max]

    • THD(total)
    • <20%

    • Power Factor(PF)
    • >0.95

    • Inrush Current(Typ#)
    • Cold Start 50A(twidth=270us measured at 50% Ipeak) at 230VAC

    • Leakage Current(Typ#)
    • <0.75mA/230VAC

    Output Information
    • Output Power
    • 30W(Max.)

    • Output voltage
    • 65V to 85V

    • Output Constant Current
    • 0.35A

    • Maximum open circuit voltage
    • <60V

    • Output Current Ripple(ripple=peak to peak)
    • 2% of nominal output voltage (whichever is greater),measured at 20Mhz bandwidth with 0.1uf ceramic capacitor in parallel with 10uf electrolytic capacitor connected at the end of the output connector.

    • Protections
    • Over Current, Over Voltage, Short Circuit and Open Circuit Protection for LED+ and LED-

    • Ambient Temp Range
    • _40℃ to +70℃, 20-95% RH non-condensing

    • Max Case Temperature(Tc)
    • 75℃ for Life & 85℃ for UL Safety

    Features
    • Dimming Interface
    • NA

    • DALI Dimming Specifications
    • Sink Current <2mA

    • Dimming range
    • NA

    Environment & Approbation
    • Environmental Protection Rating
    • UL damp and dry

    • Agency Approbations
    • UL8750,UL1310, CSA-C22.2 No.250.0-08,ENEC EN61347-1,EN61347-2-13 independent, EN62384, TUV EN60950-1

    • Electromagnetic Compliance
    • FCC Title 47 Part 15 Class A
      Compliance to EN55015,EN61000-3-2 Class C(@100% Load);EN6100-3-3
      Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547,EN55024, light industry level(surge 2KV), criteria A

    • Audible noise
    • <24dB Class A

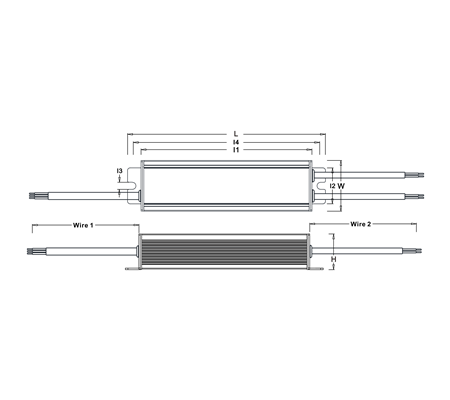

    Mechanical Dimensions
    • Case Length(L)
    • 6inch
      154mm

    • Case Width(W)
    • 1.6inch
      40mm

    • Case Height(H)
    • 1.1inch
      28mm

    • Mounting Holes(I1)
    • 5.2inch
      133mm

    • Mounting Holes(I2)
    • 1.0inch
      31mm

    • Mounting Holes(I3)
    • 0.18inch
      4.5mm

    • Mounting Holes(I4)
    • 5.7inch
      146mm

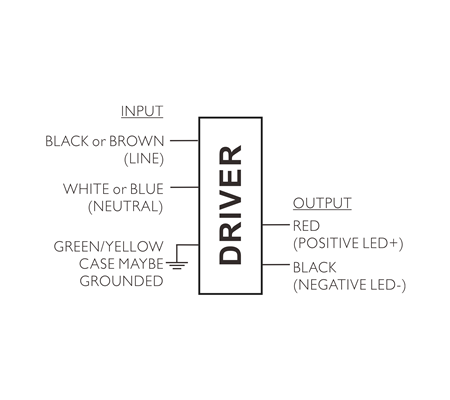

    • Input Wire(Wire1)_SJTW 18 AWG x 3C
    • 11.8inch
      300mm±20

    • Output Wire(Wire2)_SJTW 18 AWG x 2C
    • 11.8inch
      300mm±20

    • Overall Length
    • 6inch
      154mm
