    • LPD Constant Current NON-Dimmable 100W

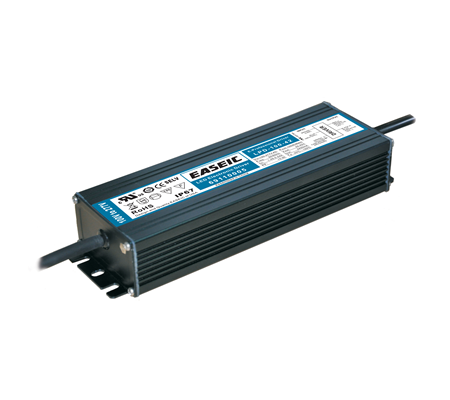

    • LPD 100W 32-42V 2400mA NON-Dimmable 90-305Vac
    Home > Products > IP43 & IP67 LED Drivers > Outdoor Lighting LED driver > LPD Constant Current NON-dimmable > LPD Constant Current NON-Dimmable 100W > LPD 100W 32-42V 2400mA NON-Dimmable 90-305Vac
      Product information
    • Approbations：
    • Universal AC input (90~305Vac)
      Designed for LED lighting applications
      IP67/IP65 design for indoor or outdoor installations
      These drivers operate to specification under wide temperature and electrical ranges to ensure reliability
      LPD series LED drivers for use in Class I, Division 2 hazardous location luminaires
      Cooling by free air convection
      Suitable for dry, damp, and wet location
      5 year warranty
    • Download Leaflet


    Specifications
    Ordering Information
    • Type
    • LPD-100-42

    • Order Code
    • 69110005

    • Full product name
    • E-Professional 100W 32-42V 2400mA NON-Dimmable

    Input Information
    • Line Voltage
    • 90-305Vac

    • Line Current
    • 0.97A@120VAC
      0.51A@230VAC
      0.42A@277VAC

    • Line Frequency
    • 50/60Hz

    • Min, Mains Voltage operational
    • 90[min]

    • Max, Mains Voltage operational
    • 305[max]

    • THD(total)
    • <20%

    • Power Factor(PF)
    • >0.95

    • Inrush Current(Typ#)
    • Cold Start 65A(twidth=270us measured at 50% Ipeak) at 230VAC

    • Leakage Current(Typ#)
    • <0.75mA/230VAC

    Output Information
    • Output Power
    • 100W(Max.)

    • Output voltage
    • 32V to 42V

    • Output Constant Current
    • 2.4A

    • Maximum open circuit voltage
    • <60V

    • Output Current Ripple(ripple=peak to peak)
    • 2% of nominal output voltage (whichever is greater),measured at 20Mhz bandwidth with 0.1uf ceramic capacitor in parallel with 10uf electrolytic capacitor connected at the end of the output connector.

    • Protections
    • Over Current, Over Voltage, Short Circuit and Open Circuit Protection for LED+ and LED-

    • Ambient Temp Range
    • _40℃ to +70℃, 20-95% RH non-condensing

    • Max Case Temperature(Tc)
    • 75℃ for Life & 85℃ for UL Safety

    Features
    • Dimming Interface
    • NA

    • DALI Dimming Specifications
    • Sink Current <2mA

    • Dimming range
    • NA

    Environment & Approbation
    • Environmental Protection Rating
    • UL damp and dry

    • Agency Approbations
    • UL8750,UL1310, CSA-C22.2 No.250.0-08,ENEC EN61347-1,EN61347-2-13 independent, EN62384, TUV EN60950-1

    • Electromagnetic Compliance
    • FCC Title 47 Part 15 Class A
      Compliance to EN55015,EN61000-3-2 Class C(@100% Load);EN6100-3-3
      Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547,EN55024, light industry level(surge 2KV), criteria A

    • Audible noise
    • <24dB Class A

    Mechanical Dimensions
    • Case Length(L)
    • 7.4inch
      189mm

    • Case Width(W)
    • 2.6inch
      66mm

    • Case Height(H)
    • 1.5inch
      38mm

    • Mounting Holes(I1)
    • 6.3inch
      161mm

    • Mounting Holes(I2)
    • 1.3inch
      34mm

    • Mounting Holes(I3)
    • 0.2inch
      5mm

    • Mounting Holes(I4)
    • 6.9inch
      174mm

    • Input Wire(Wire1)_SJTW 18 AWG x 3C
    • 11.8inch
      300±20mm

    • Output Wire(Wire2)_SJTW 18 AWG x 2C
    • 11.8inch
      300±20mm

    • Overall Length
    • 7.4inch
      189mm
